Removing/installing the rear engine mount - AR22.10-P-1160HA

ENGINES 111, 605, 606 in MODEL 124

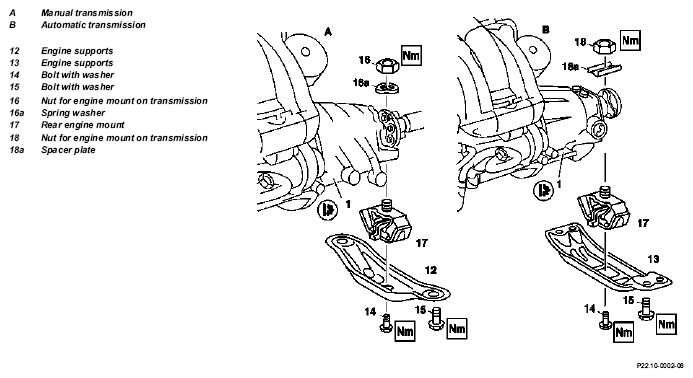

Fig 1: Identifying Rear Engine Mount Removal/Install Components - Engines 111, 605, 606 In Model 124

	Removing/installing
1	Support transmission (1)
2	Remove engine crossmember (12, 13) at the rear	Engine 111 in model 124	*BA22.10-P-1002-01A
		Engine 111 in model 124	*BA22.10-P-1003-01A
		Engines 605, 606 in model 124	*BA22.10-P-1002-01D
		Engines 605, 606 in model 124	*BA22.10-P-1003-01D
3	Remove rear engine mount (17)	Engine 111 in model 124	*BA22.10-P-1006-01A
		Engine 605, 606 in model 124 Note spring washer or washer plate.	*BA22.10-P-1006-01D
4	Install in reverse order

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 111 in model 124
BA22.10-P-1002-01A	Bolt for rear engine mount on rear engine crossmember	Nm	25
BA22.10-P-1003-01A	Bolt for rear engine crossmember on body	Nm	40
BA22.10-P-1006-01A	Bolt or nut for rear engine mount on transmission	Nm	70

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 605, 606 in model 124
BA22.10-P-1002-01D	Bolt for rear engine mount on rear engine crossmember	Nm	25
BA22.10-P-1003-01D	Bolt/nut for, rear engine crossmember on body	Nm	40
BA22.10-P-1006-01D	Bolt or nut for rear engine mount on transmission	Nm	70
