Removing and installing air cleaner - AR09.10-P-1050A

ENGINE 611.960 in MODEL 202.133 /134 /193 /194

ENGINE 611.961 up to 30.6.99 in MODEL 210.006 /007 /206 /606

Model 202:

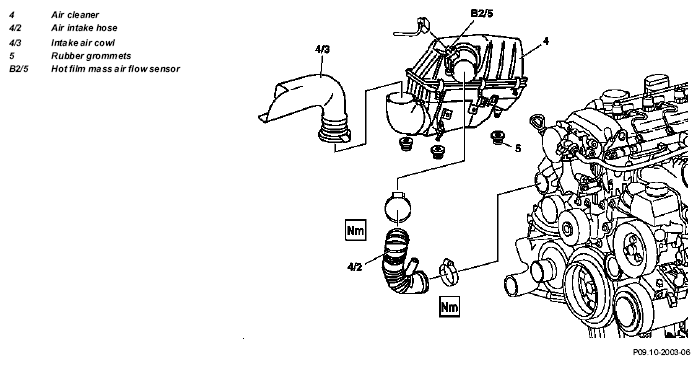

Fig 1: Identifying Air Cleaner Remove/Install Components - Model 202

Model 210 (up to 06.99):

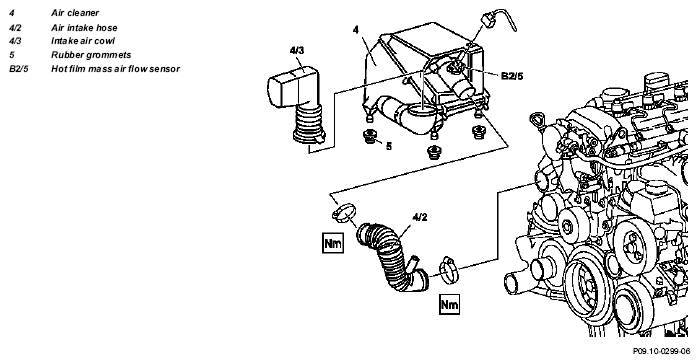

Fig 2: Identifying Air Cleaner Remove/Install Components - Model 210 (Up To 06.99)

	Removing, installing
1.1	Release coolant return flow hose at air cleaner	Model 202
2.1	Detach charge pressure regulator vacuum transducer (Y31/5) at air cleaner	Model 210
3	Unplug electrical connections at hot film mass air flow sensor (B2/5)
4	Remove air intake hose (4/2) at air cleaner	Inspect condition of hose clips and hoses, replace if necessary.
			*WH58.30-Z-1002-06A
			*WH58.30-Z-1001-06A
5	Remove intake air cowl (4/3)
6	Remove air cleaner (4)	Installation:  when installing, insert securing studs of the air cleaner housing into the rubber grommets (5) of the wheel-housing liner.
7	Install in the reverse order
