Connecting diagram of intake manifold - AR09.20-P-1310-01DC

Connecting diagram of vacuum supply HFM-SFI model 202

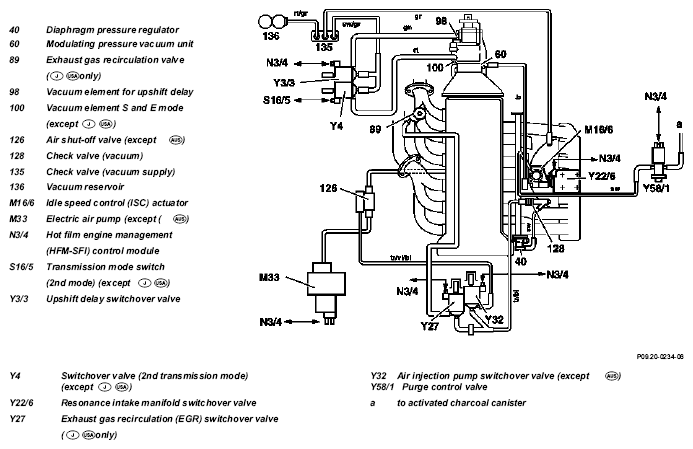

Fig 1: Connecting Diagram Of Vacuum Supply HFM-SFI Model 202

G04715075
