Removing and installing ABS hydraulic unit - AR42.30-P-0705A

MODEL 202 up to 31.8.95

Connections on the Bosch ABS hydraulic unit (A7/3)

Fig 1: Identifying Connections On Bosch ABS Hydraulic Unit

Connections on the Teves ABS hydraulic unit (A7/3)

Fig 2: Identifying Connections On Teves ABS Hydraulic Unit

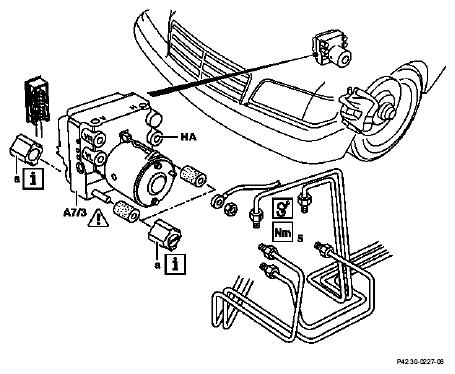

Fig 3: Identifying ABS Hydraulic Unit Remove/Install Components - Model 202 Up To 31.8.95

Fig. item, etc.	Work instructions
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on brake fluid		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Ignition off
After installation	Bleed brake system		AR42.10-P-0010A
After installation	Read fault memory and erase	Diagnosis Manual, Chassis, Volume 3.
			AD00.00-P-1000AZ
5	Hydraulic lines	Unscrew, screw on
		Box wrench bit	Figure
		Torx bit set	Fig 6
			*BA42.40-P-1001-01A
		Risk of confusion! Mark hydraulic lines and corresponding connections before unscrewing.
		Seal off hydraulic lines and connections with blind plugs.	Fig 5
		Installation:  Pay attention to the markings when screwing on the hydraulic lines. Do not misconnect hydraulic lines. Trace line routing to the corresponding wheel if necessary.
A	Plastic caps	Detach, attach. Lug at the bottom.

ACCELERATION SLIP REGULATION (ASR)

Fig 4: Identifying Box Wrench Bit (000 589 75 03 00)

Fig 5: Identifying Set Of Plugs (129 589 00 91 00)

Fig 6: Identifying Torx Bit Set (000 589 01 10 00)
