Brake Assist (BAS), arrangement of components - GF42.31-P-0001-02A

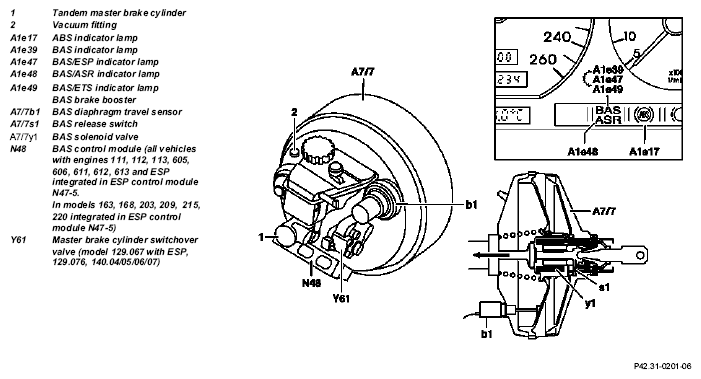

Fig 1: Identifying Brake Assist Components
G04713673

IMPORTANT Models 203, 209, 215, 220 have a multifunction display (A1p13) in the instrument cluster instead of the malfunction indicator lamp.
