Anti-lock brake system (ABS), location of electrical/electronic components - GF42.30-P-0003-09B

Model 202 as of 1.8.96

Model 208

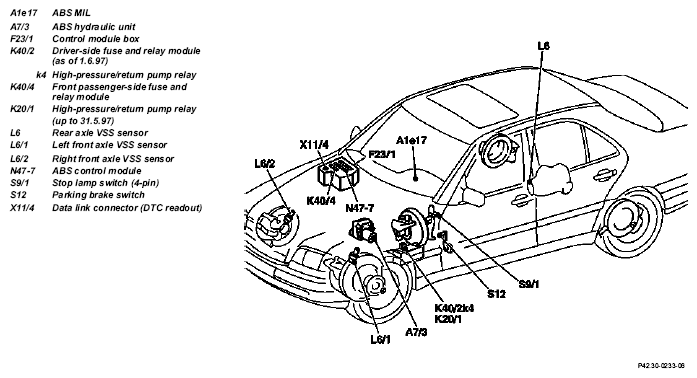

Fig 1: Identifying Anti-Lock Brake System (ABS), Location Of Electrical/Electronic Components
G04713671
