Acceleration slip regulation (ASR V/ETS), location of electrical/electronic components - GF42.40-P-0005-03F

Model 202 as of 06/97, 208

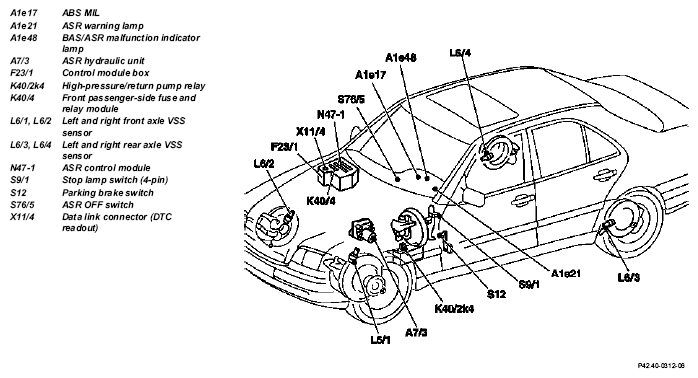

Fig 1: Identifying Acceleration Slip Regulation (ASR V/ETS), Location Of Electrical/Electronic Components - Model 202 As Of 06/97, 208
G04713677
