Adjusting accelerator control - AR30.10-P-1010G

ENGINE 111.946 in MODEL 170

ENGINE 111.921 /945 /974 in MODEL 202

ENGINE 111.945 in MODEL 208

ENGINE 111.942 /970 in MODEL 210

Shown on engine 111 in model 210

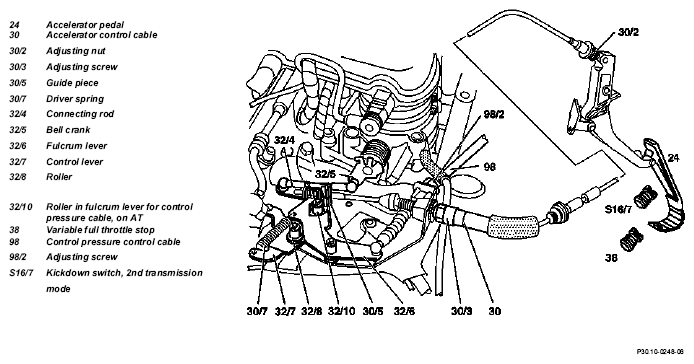

Fig 1: Identifying Accelerator Control Components - Engine 111 In Model 210

	Adjusting
	Ignition: OFF
1	Inspect connecting rods (32/4) and accelerator control cable (30) to ensure they operate freely and are in proper condition	Replace parts, if necessary
2	Check play between driver spring (30/7) and guide piece (30/5), adjust	There must be play between driver spring (30/7) and guide piece (30/5). Adjust with adjusting screw (30/3), if necessary	*BE30.10-P-1001-01A
3	Detach connecting rod (32/4) at bell crank (32/5) and check closed throttle position (idle) stop
4	Press bell crank (32/5) onto cylinder head with screwdriver	Against spring force in actuator. Position connecting rod (32/4) at ball pin free of tension (figure), press on, adjust if necessary. Attach connecting rod (32/4) and lock. The connecting rod (32/4) must be adjusted very accurately.
5	Adjust control pressure control cable (98)	With control pressure control cable attached, turn adjusting screw (98/2) until the tip of the drag lever is at the same level as the tip of the fulcrum lever (32/6)
6.1	Checking full throttle stop, adjusting	Manual transmission:  With engine switched off, depress accelerator pedal (24) to full throttle stop. Bell crank (32/5) must be resting against full throttle stop of idle speed control actuator. Release variable full throttle stop (38), if necessary, by turning to the left. Pull out stop pin slightly, lock full throttle stop (38) in position by turning to the right.
6.2		Automatic transmission:  With engine switched off, depress accelerator pedal (24) to full throttle stop at kickdown switch (S16/7) (do not operate kickdown switch  ). Bell crank (32/5) must just be resting against full throttle stop of idle speed control actuator; set with adjusting screw (30/3), if necessary
7	Checking idle speed adjustment at chassis end, adjusting	Accelerator pedal (24) in idle speed position. There must be play between driver spring (30/7) and guide piece (30/5); adjust from inside car with adjusting nut (30/2), if necessary
8	Grease accelerator control cable (30) between end piece and guide piece (30/5) with anticorrosion grease		*BR00.45-Z-1006-06A
