Check vehicle level at front and rear axle with electronic inclinometer, adjust if necessary - AR40.20-P-0301P

MODEL 171, 203, 209.3 /4

Fig 1: Identifying Inclinometer And Measuring Sensor - Model 171, 203, 209.3 /4

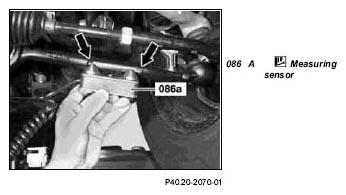

Shown: Measurement at front axle without 4MATIC

Fig 2: Locating Measuring Sensor - Front Axle Without 4MATIC - Model 171, 203, 209.3 /4

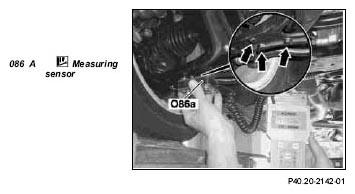

Shown: Measurement at the front axle with 4MATIC

Fig 3: Locating Measuring Sensor - Front Axle With 4MATIC - Model 171, 203, 209.3 /4

Shown: measurement at the rear axle

Fig 4: Locating Measuring Sensor - Rear Axle - Model 171, 203, 209.3 /4

MODIFICATION NOTES

17.4.07

Vehicle level - front axle

Model 203 ECE/USA, 4MATIC

*BE40.20-P-1002-02D

	Checking
1	Carry out preconditions and tests for vehicle level measurement		AR40.00-P-0202A
2	Clean measuring points	This prevents any measuring errors.
3.1	Mount measuring sensor (086a) on the cross strut (arrows) and read off the vehicle level on the inclinometer (86)	Model 171, 209, 203 without 4MATIC
		The connecting cable for the measuring sensor (086a) must face to the vehicle center, otherwise any measurement will be incorrect. Measure vehicle level at Measuring point 1 (left front) and measuring point 2 (right front) and store measured values.
		Vehicle level - front axle Electronic inclinometer (CM 9606), refer to GOTIS http://gotis.aftersales.daimlerchrysler.com	*BE40.20-P-1002-02D
3.2	Mount measuring sensor (086a) on transverse control arm (arrows) and read off vehicle level on the inclinometer (86)	Model 203 with 4MATIC
		The connecting cable for the measuring sensor (086a) must face to the vehicle center, otherwise any measurement will be incorrect. Measure vehicle level at Measuring point 1 (left front) and measuring point 2 (right front) and store measured values.
		Vehicle level - front axle Electronic inclinometer (CM 9606), refer to GOTIS http://gotis.aftersales.daimlerchrysler.com	*BE40.20-P-1002-02D
4	Mount measuring sensor (086a) on rear axle shaft and read off vehicle level on the inclinometer (86)	The connecting cable for the measuring sensor (086a) must face to the vehicle center, otherwise any measurement will be incorrect. Measure vehicle level at Measuring point 3 (left front) and measuring point 4 (right front) and store measured values.
		Vehicle level - rear axle Electronic inclinometer (CM 9606), refer to GOTIS http://gotis.aftersales.daimlerchrysler.com	*BE40.20-P-1002-03D
5	Check stored values of vehicle level	Vehicle level - front axle	*BE40.20-P-1002-02D
		Permissible difference in vehicle level between right and left sides of the vehicle	*BE40.20-P-1003-02D
		Vehicle level - rear axle	*BE40.20-P-1002-03D
		Permissible difference in vehicle level between right and left sides of the vehicle If the vehicle level at the front or rear axle is outside the tolerance, the vehicle level must be adjusted by changing the springs or the spring rubber mounts.	*BE40.20-P-1003-03D
6.1	Adjust headlamps	If the vehicle level was adjusted
	Check and correct headlamp adjustment	Model 171	AP82.10-P-8260V
		Model 203, 209	AP82.10-P-8260P

VEHICLE LEVEL - FRONT AXLE

Number	Designation			Model 171 except AMG or without MB sports suspension (code 486)	Model 171 AMG or with MB sports suspension (code 486)	Model 203 up to 03/2004, USA, except 4MATIC, except AMG, except MB sports suspension (code 486), except suspension with increased ground clearance (code 482)
BE40.20-P-1002-02D	Vehicle level - front axle		∠ °	+2,7 (± 1,3)	+0,8 (±1,3)	+8,4 (±1,4)
BE40.20-P-1003-02D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-02D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - FRONT AXLE

Number	Designation			Model 203 ECE/USA, 4MATIC	Model 203 up to 03/2004, except USA, except 4MATIC, except AMG, except MB sports suspension (code 486), except suspension with increased ground clearance (code 482)	Model 203 up to 03/2004, ECE/USA, AMG or with MB sports suspension (code 486), except 4MATIC, except suspension with increased ground clearance (code 482)
BE40.20-P-1002-02D	Vehicle level - front axle		∠ °	+2,4 (± 1,6)	+6,9 (± 1,6)	+4,4 (± 1,6)
BE40.20-P-1003-02D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-02D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - FRONT AXLE

Number	Designation			Model 203 up to 03/2004, with suspension with increased ground clearance (code 482), except 4MATIC, except AMG, except MB sports suspension (code 486)	Model 203.0 as from 04/2004, ECE, except 4MATIC, except AMG, except MB sports suspension (code 486), except suspension with increased ground clearance (code 482)	Model 203.0 as from 04/2004, ECE/ USA, AMG or with MB sports suspension (code 486), except 4MATIC, except suspension with increased ground clearance (code 482)
BE40.20-P-1002-02D	Vehicle level - front axle		∠ °	+11,5 (±1,6)	+6,9 (± 1,6)	+4,5 (± 1,6)
BE40.20-P-1003-02D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-02D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - FRONT AXLE

Number	Designation			Model 203.7 as from 04/2004, ECE, AMG or with MB sports suspension (code 486), except 4MATIC, except suspension with increased ground clearance (code 482)	Model 203.2 as of 04/2004, ECE, AMG or with MB sports suspension (code 486), with/without level control, except 4MATIC, except suspension with increased ground clearance (code 482)	Model 203.0/2 as from 04/2004, USA, except 4MATIC, except AMG, except MB sports suspension (code 486), except suspension with increased ground clearance (code 482)
BE40.20-P-1002-02D	Vehicle level - front axle		∠ °	+4,5 (±1,6)	+4,5 (± 1,6)	+8,5 (± 1,6)
BE40.20-P-1003-02D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-02D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - FRONT AXLE

Number	Designation			Model 203.2 as from 04/2004, ECE, with engine 112, 271, 612, 646, except 4MATIC, Model 203.2 with level control, except 4MATIC, except AMG, except MB sports suspension (code 486), except suspension with increased ground clearance (code 482)	Model 203.0/2/7 as from 04/2004, with suspension with increased ground clearance (code 482), except 4MATIC, except AMG, except MB sports suspension (code 486)	Model 203.2 as from 04/2004, USA, AMG or with MB sports suspension (code 486), except 4MATIC, except suspension with increased ground clearance (code 482)
BE40.20-P-1002-02D	Vehicle level - front axle		∠ °	+6,9 (± 1,6)	+11,2 (± 1,6)	+3,2 (± 1,6)
BE40.20-P-1003-02D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-02D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - FRONT AXLE

Number	Designation			Model 203.7 as from 04/2004, ECE/ USA, except 4MATIC, except AMG, except MB sports suspension (code 486), except suspension with increased ground clearance (code 482)	Model 209.3/4 ECE with normal chassis (code 485)	Model 209.3/4 USA with normal chassis (code 485)
BE40.20-P-1002-02D	Vehicle level - front axle		∠ °	+6,9 (± 1,6)	+6,9 (± 1,6)	+4,0 (±1,6)
BE40.20-P-1003-02D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-02D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - FRONT AXLE

Number	Designation			Model 209.3/4 as from 04/2004 ECE with MB sports suspension (code 486) or AMG	Model 209.3/4 up to 03/2004 with MB sports suspension (code 486) or AMG	Model 209.3/4 with suspension with increased ground clearance (code 482)
BE40.20-P-1002-02D	Vehicle level - front axle		∠ °	+4,0 (± 1,6)	+4,4 (± 1,6)	+11,2 (± 1,6)
BE40.20-P-1003-02D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-02D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - REAR AXLE

Number	Designation			Model 171 except AMG, except MB sports suspension (code 486)	Model 171 with MB sports suspension (code 486) or AMG	Model 203.0/2 up to 03/2004, ECE/USA, except 4MATIC, except MB sports suspension (code 486), except AMG, except suspension with increased ground clearance (code 482)
BE40.20-P-1002-03D	Vehicle level - rear axle		∠ °	+1,7 (± 0,8)	+0,7 (± 0,8)	+3,2 (± 1,6)
BE40.20-P-1003-03D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-03D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - REAR AXLE

Number	Designation			Model 203 with 4MATIC	Model 203.7 up to 03/2004, except 4MATIC except 4MATIC, except MB sports suspension (code 486), except AMG, except suspension with increased ground clearance (code 482)	Model 203 up to 03/2004, with MB sports suspension (code 486) or AMG, except USA, except 4MATIC
BE40.20-P-1002-03D	Vehicle level - rear axle		∠ °	+2,6 (± 1,6)	+2,2 (± 1,6)	+1,4 (± 1,6)
BE40.20-P-1003-03D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-03D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - REAR AXLE

Number	Designation			Model 203 up to 03/2004, USA, with MB sports suspension (code 486) or AMG, except 4MATIC	Model 203 up to 03/2004, with suspension with increased ground clearance (code 482), except 4MATIC	Model 203.0 as from 04/2004, ECE, USA, except 4MATIC, except MB sports suspension (code 486), except AMG, except suspension with increased ground clearance (code 482)
BE40.20-P-1002-03D	Vehicle level - rear axle		∠ °	+3,2 (± 1,6_	+4,9 (±1,6)	+3,3 (± 1,6)
BE40.20-P-1003-03D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-03D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - REAR AXLE

Number	Designation			Model 203.0 as from 04/2004, ECE/USA, with MB sports suspension (code 486) or AMG, except 4MATIC	Model 203.0/7 as from 04/2004, with suspension with increased ground clearance (code 482), except 4MATIC	Model 203.2 as from 04/2004, ECE, with MB sports suspension (code 486) or AMG, with/without level control, except 4MATIC
BE40.20-P-1002-03D	Vehicle level - rear axle		∠ °	+1,5 (± 1,6)	+4,9 (± 1,6)	+1,5 (± 1,6)
BE40.20-P-1003-03D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-03D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - REAR AXLE

Number	Designation			Model 203.2 as from 04/2004, ECE, with engine 112, 271, 612, 646, except 4MATIC Model 203.2 with level control, except 4MATIC	Model 203.2 as from 04/2004 USA, except 4MATIC, except MB sports suspension (code 486), except AMG, except suspension with increased ground clearance (code 482)
BE40.20-P-1002-03D	Vehicle level - rear axle		∠ °	+3,1 (±1,6)	+3,1 (±1,6)
BE40.20-P-1003-03D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1
BE40.20-P-1003-03D		When calibrating with Star Diagnosis	∠ °	0.5	0.5

VEHICLE LEVEL - REAR AXLE

Number	Designation			Model 203.7 as from 04/2004, ECE/USA, except 4MATIC, except MB sports suspension (code 486), except AMG, except suspension with increased ground clearance (code 482)	Model 203.2 as from 04/2004, USA, with MB sports suspension (code 486) or AMG, except 4MATIC	Model 203.2 as from 04/2004, with suspension with increased ground clearance (code 482), except 4MATIC
BE40.20-P-1002-03D	Vehicle level - rear axle		∠ °	+2,1 (± 1,6)	+3,1 (± 1,6)	+4,7 (± 1,6)
BE40.20-P-1003-03D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-03D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - REAR AXLE

Number	Designation			Model 203.7 as from 04/2004, ECE, with MB sports suspension (code 486) or AMG, except 4MATIC, except suspension with increased ground clearance (code 482)	Model 209.3/4 ECE	Model 209.4 as of 04/2004, ECE [Economic Commission for Europe], with 4-, 6- and 8 cylinder engine
BE40.20-P-1002-03D	Vehicle level - rear axle		∠ °	+1,5 (± 1,6)	+3,1 (± 1,1)	+2,4 (± 1,1)
BE40.20-P-1003-03D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1	1
BE40.20-P-1003-03D		When calibrating with Star Diagnosis	∠ °	0.5	0.5	0.5

VEHICLE LEVEL - REAR AXLE

Number	Designation			Model 209.3/4 USA with normal suspension (Code 485), Model 209.3/4 with MB sports suspension (Code 486) or AMG	Model 209.3/4 with suspension with increased ground clearance (code 482)
BE40.20-P-1002-03D	Vehicle level - rear axle		∠ °	+1,5 (±1,1)	+4,5 (±1,1)
BE40.20-P-1003-03D	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠ °	1	1
BE40.20-P-1003-03D		When calibrating with Star Diagnosis	∠ °	0.5	0.5
