Removing and installing air cleaner - AR09.10-P-1050G

ENGINE 111.920 /921 /940 /941 /945 /946 /960 /961 /974 /977

Shown

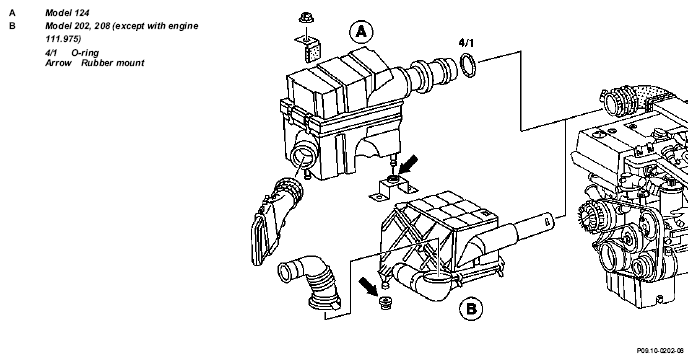

Fig 1: Identifying Air Cleaner Remove/Install Components - Model 124, Model 202, 208 (Except With Engine 111.975)

Model 163 with engine 111.977

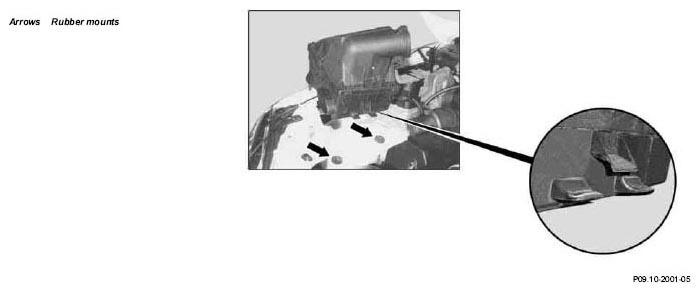

Fig 2: Identifying Air Cleaner Rubber Mounts

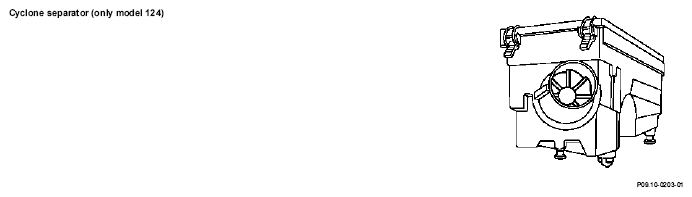

Fig 3: Identifying Cyclone Separator

Fig. item, etc.	Work instructions
	Cyclone separator	Model 124  When retrofitting, replace complete air cleaner.
		Model 163, 170, 202  Retrofitting not possible. Air cleaner element provided with filter felt or foam
4/1	O-ring (HFM-SFI only)	Installing:  Check, replace if necessary. Oil for installing
Arrows	Pins of air cleaner	Installing:  Press into rubber mount (arrow)
	Coolant hose	Model 163  Take out of guide at air cleaner
