Wind noise at triangular window in rear door - AF94.10-P-1202EG
MODEL 124, 140, 202
| Cause | Remedy | ||
|---|---|---|---|

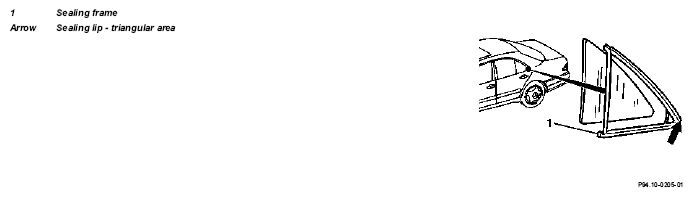

| Sealing frame for triangular window not always optimal, sealing lip sticks up. | 1 Install sealing frame carefully; it must be seated completely and make full contact in the window frame. ↓ | ||
| Model 124 | ra72001240197x | ||
| Model 140 | ra72001400197x | ||
| Model 202 | AR72.12-P-1970E | ||
| 2 If sealing lip does not make optimum contact (arrow), fill triangular area between sealing frame and window frame with MB universal sealant. | |||
| 3 Replace highly deformed sealing frames. ↓ |
|||
| Model 124 | ra72001240197x | ||
| Model 140 | ra72001400197x | ||
| Model 202 | AR72.12-P-1970E |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| 003 989 01 71 | MB universal sealant | 1 |
