Female contacts and contact pins, installation survey, as-built configuration - GF00.19-P-7000A

MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245, 251, 414, 461, 463

Fig 1: Identifying Junior Power Timer Pin

Fig 2: Identifying Standard Power Timer Pin

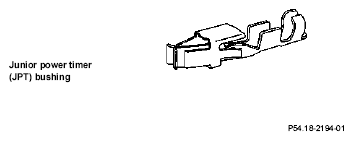

Fig 3: Identifying Junior Power Timer Bushing

Fig 4: Identifying Standard Power Timer Bushing

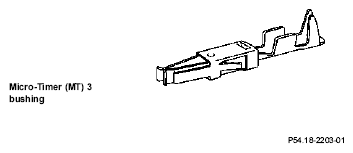

Fig 5: Identifying Micro-Timer (MT) 3 Bushing

Fig 6: Identifying Maxi Timer Bushing

Fig 7: Micro Quadlock System Male Contact

Fig 8: Identifying Sensor Spade-Type Contact Pin

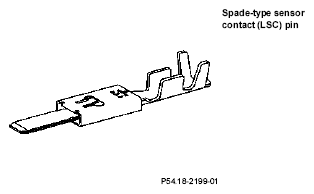

Fig 9: Identifying Spade-Type Sensor Contact Pin

Fig 10: Identifying E95, Female

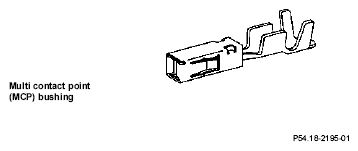

Fig 11: Identifying Multi Contact Point Bushing

Fig 12: Identifying Micro Quadlock System Female Contact

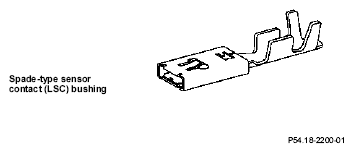

Fig 13: Identifying Sensor Spade-Type Contact Bushing

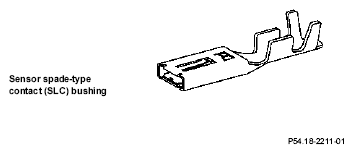

Fig 14: Identifying Spade Type Sensor Contact Bushing

Fig 15: Identifying Siemens ELO Pin

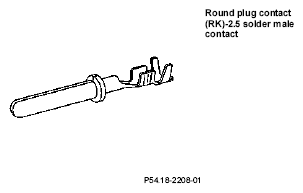

Fig 16: Identifying Round Plug Contact (RK)-2.5 Solder Male Contact

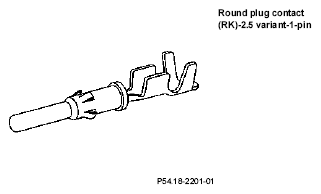

Fig 17: Identifying Round Plug Contact (RK)-2.5 Variant-1-Pin

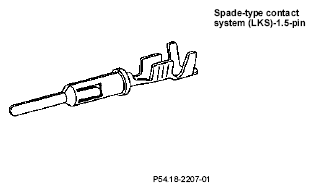

Fig 18: Identifying Spade-Type Contact System (LKS)-1.5-Pin

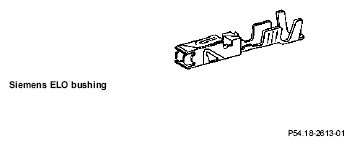

Fig 19: Identifying Siemens ELO Bushing

Fig 20: Identifying Round Plug Contact (RK)-2.5 Solder Female Contact

Fig 21: Identifying Round Plug Contact (RK)-2.5 Variant-1 Bushing

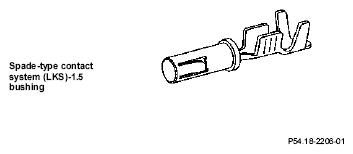

Fig 22: Identifying Spade-Type Contact System (LKS)-1.5 Bushing

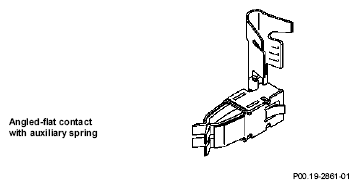

Fig 23: Identifying Angled-Flat Contact With Auxiliary Spring

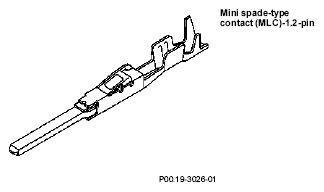

Fig 24: Identifying Mini Spade-Type Contact (MLC)-1.2-Pin

Fig 25: Identifying YAZAKI 1.5 System

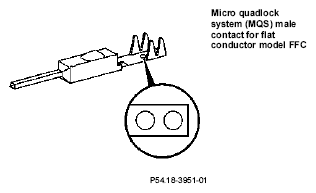

Fig 26: Identifying Micro Quadlock System Male Contact For Flat Conductor Model FFC

Fig 27: Identifying Micro Quadlock System Male Contact For Flat Conductor Model FPC

Fig 28: Identifying Mini Spade-Type Contact (MLC)-1.2 Bushing

Fig 29: Identifying Mini Spade-Type Contact (MLC)-1.2-USC Bushing

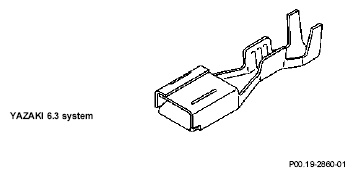

Fig 30: Identifying YAZAKI 6.3 System

Fig 31: Identifying Micro Quadlock System Female Contact For Flat Conductor Model FFC

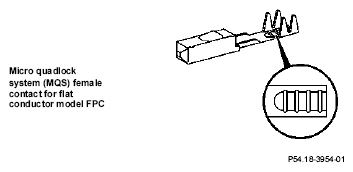

Fig 32: Identifying Micro Quadlock System Female Contact For Flat Conductor Model FPC

Notes on replacement of safety-relevant and special components	Model 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245, 251, 414, 461 as of 1.4.94, 463	AH00.19-P-1000-08A
Notes regarding plug connections		AH00.19-P-1000-06A
Junior power timer contact family	Plugs and couplings.	GF00.19-P-8106A
Standard power timer contact family	Plugs and couplings.	GF00.19-P-8108A
Micro timer 3 contact family	Couplings.	GF00.19-P-8105A
Maxi power timer contact family	Couplings.	GF00.19-P-8110A
E95 contact family	Couplings.	GF00.19-P-8104A
Multi contact point contact family	Plugs and couplings.	GF00.19-P-8107A
Micro quadlock system contact family	Micro quadlock system contact family variant 1 Plugs and couplings.	GF00.19-P-8102A
	Micro Quadlock System, variant 2 contact family Plugs and couplings.	GF00.19-P-8102B
Sensor laminated contact, connector family	Sensor spade-type contact Design 97 contact family Plugs and couplings.	GF00.19-P-8101A
	Sensor spade-type contact Version 2 contact family Plugs and couplings.	GF00.19-P-8101B
Spade-type sensor contact contact family	Plugs and couplings	GF00.19-P-8109A
Siemens ELO contact family	Plugs and couplings.	GF00.19-P-8103A
Round plug contact 2.5 variant 1 contact family	Plugs and couplings.	GF00.19-P-8111A
Round-type contact 2.5 solder contact contact family	Plugs and couplings.	GF00.19-P-8112A
Spade-type contact system 1.5 contact family	Plugs and couplings.	GF00.19-P-8113A
Mini spade-type contact contact family	Plugs and couplings.	GF00.19-P-8115A
