Carrying out distance and comparison measurements on front and rear axles - AR40.30-P-0402GH

MODEL 163

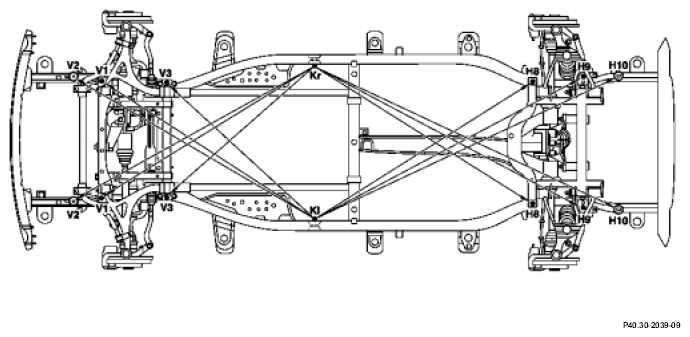

Fig 1: Identifying Distance And Comparison Measurement On Rear Axle - Model 163

1	Preparation for distance and comparison measurement		AR40.30-P-0401GH
2	Carry out distance and comparison measurement on front axle	with measuring fixture set 140 589 09 63 00	AR40.30-P-0402-01GI
		with measuring fixture set 168 589 07 63 00	AR40.30-P-0402-01GH
		Test values	*BE40.30-P-1001-06C
3	Carry out distance and comparison measurement on rear axle	with measuring fixture set 140 589 09 63 00	AR40.30-P-0402-02GI
		with measuring fixture set 168 589 07 63 00	AR40.30-P-0402-02GH
		Test values	*BE40.30-P-1001-05C

Test values for distance and comparison measurement on front axle

Number	Designation			Model 163
BE40.30-P-1001-06C	Dimension	V1	mm	3
		V2	mm	3
		V3	mm	3
		Figure see		AR40.30-P-0402-01GH

Test values for distance and comparison measurement on rear axle

Number	Designation			Model 163
BE40.30-P-1001-05C	Dimension	H8	mm	3
		H8	mm	3
		H9	mm	3
		H10	mm	3
		Figure see		AR40.30-P-0402-02GH

Fig 2: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Fig 3: Identifying Measuring Fixture Set (140 589 09 63 00)

Fig 4: Identifying Connecting Parts (124 589 08 63 00)

Fig 5: Identifying Measuring Fixture Set (168 589 07 63 00)
