Replacing bulbs in push-button control module - AR83.25-P-1123E

MODEL 202 up to 31.8.95 except CODE (581a) Air conditioning (automatic)

Illustrated on model 202 with automatic heater

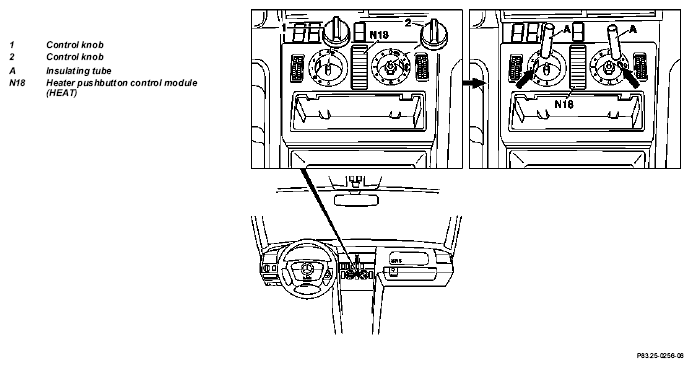

Fig 1: Identifying Control Knob And Heater Push-button Control Module - Illustrated On Model 202 With Automatic Heater

	Removal, installation
1	Pull off control knobs (1, 2)	Before pulling off the control knobs set control knob 1 to blower position 2 and control knob 2 to 3 o'clock position.
2	Press covers (arrows) to side and move to non-actuated position
3	Replace bulbs	For this purpose slide a piece of insulating tubing (A, dia. 5 mm) over the bulb and pull out the bulb.
4	Reinstall in opposite order
