Removing and installing push-button control module for air conditioning (tempmatic) - AR83.30-P-5580E
MODEL 202 with CODE (580) Air conditioning or, for USA, Tempmatic

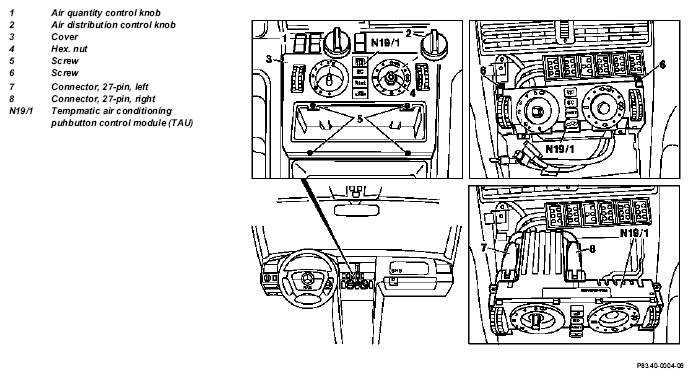

Fig 1: Identifying Air Conditioning Push-button Control Module Remove/Install Components - Model 202 With Code (580)
| Removal, installation | |||
| 1 | Remove radio | AR82.60-P-7502EA | |
| 2 | Unscrew screws (5) | ||
| 3 | Unscrew hex. nut (4) | ||
| 4 | Remove cover (3) | ||
| 5 | Unclip switch strip on cover (3) | ||
| 6 | Unscrew screws (6) | ||
| 7 | Pull out push-button control module | dh0303pk00015x | |
| dh0303pk00014x | |||
| 8 | Disconnect connectors (7, 8) | ||
| 9 | Reinstall in opposite order |
