Removing and installing electronic blower regulator - AR83.25-P-1220G
MODEL 170, 202 as of 1.9.95, 208

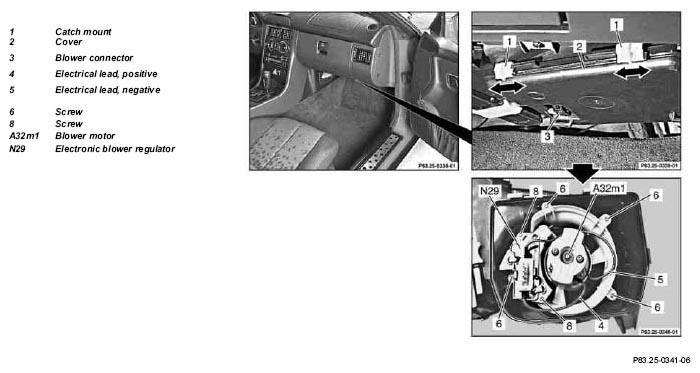

Illustrated on model 170
| Removal, installation | |||
| 1 | Remove cover below instrument panel (passenger side) | ||
| Model 170 | AR68.10-P-1520G | ||
| Model 202 | AR68.10-P-1520E | ||
| Model 208 | AR68.10-P-1520K | ||
| 2 | Disconnect blower connector (2) | ||
| 3 | Slide catch mounts (1) to side (arrows) | ||
| 4 | Swing cover (2) down | ||
| 5 | Disconnect electrical leads (4, 5) | ||
| 6 | Unscrew screws (8) | ||
| 7 | Remove electronic blower regulator (N29) | ||
| 8 | Reinstall in opposite order |
