Remove/install evaporator - AR83.30-P-5540G

MODELS 461.217 /219 /223 /227 /229 /238 /239 /249 /266 /267 /321 /322 /323 /326 /327 /328 /329 /335 /336 /337 /338 /341 /365 /366 /367 /368 /302 /332 /342 /345 /401 /402 /403 /404 /405 /450 /451 /452 /454 /455 /456 /458 /459 with CODE (H02) Air conditioning

MODELS 463.200 /204 /206 /207 /208 /209 /220 /221 /224 /225 /227 /228 /230 /231 /232 /233 /240 /241 /300 /304 /307 /308 /320 /321 /322 /323 /324 /325 /327 /328 /330 /331 with CODE (H02) Air conditioning

Using Model 463 as an example

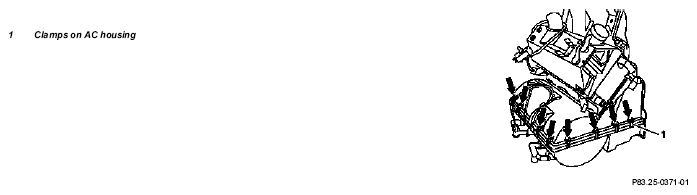

Fig 1: Identifying Evaporator Remove/Install Components - Shown Using Model 463 (1 Of 2)

Using Model 463 as an example

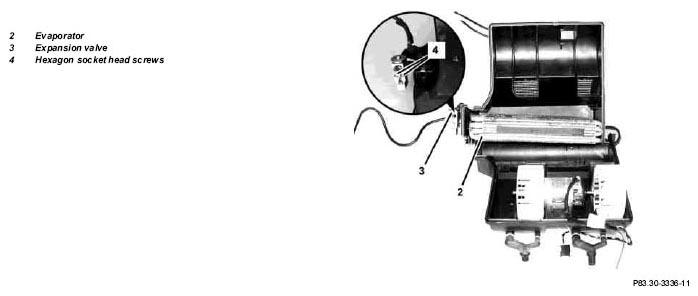

Fig 2: Identifying Evaporator Remove/Install Components - Shown Using Model 463 (2 Of 2)

	Remove/Install
1	Remove evaporator housing	Model 463	AR83.30-P-5200GA
		Model 461	AR83.30-P-5200A
2	Remove clamps on AC housing (1) and remove upper section of housing	Installation:  replace seals on housing.
3	Remove evaporator (2) with expansion valve (3)	Do not damage lamella on evaporator. Installation:  replace seals on expansion valve.
4	Remove expansion valve (3) from evaporator (2)	In order to do this, unscrew Allen screws (4) and remove expansion valve. Installation:  replace seals on expansion valve.
5	Install in the reverse order
