Removing and installing expansion reservoir - AR47.10-P-8021F
MODEL 202 as of 1.3.96, 208

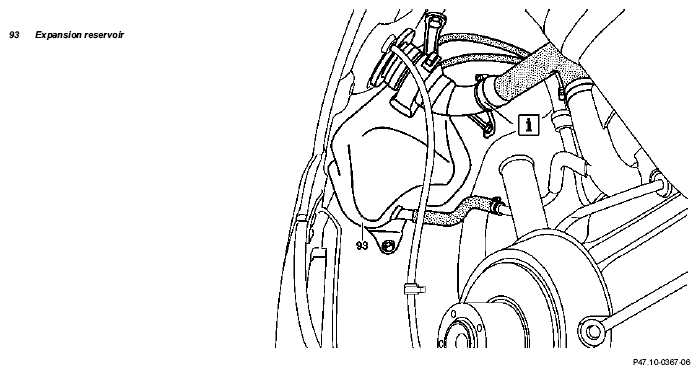

Illustrated on models 202, 208.3
| Removing, installing | |||
|---|---|---|---|
| Risk of explosion from ignition. Risk of poisoning from inhaling and swallowing fuel. Risk of injury as a result of fuel coming into contact with skin and eyes. | No fire, naked flame or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Hose clip | If fuel tank is full, pump out about 8 liters of fuel ↓ Emptying fuel tank, filling |
AR47.10-P-4001E | |
| 1 | Disconnect vent hoses and connection hose | ||
| 2 | Take expansion reservoir together with filler neck (93) and cup seal down and out | ||
| 3 | Remove guide funnel | Models 202.0, 208 | AR47.10-P-7571D |
| 4 | Install in the opposite order |
