Connecting diagram of evaporation emission control system - AR47.30-P-8212-01DE

Connecting diagram of evaporation emission control system HFM-SFI model 210 with engine 104

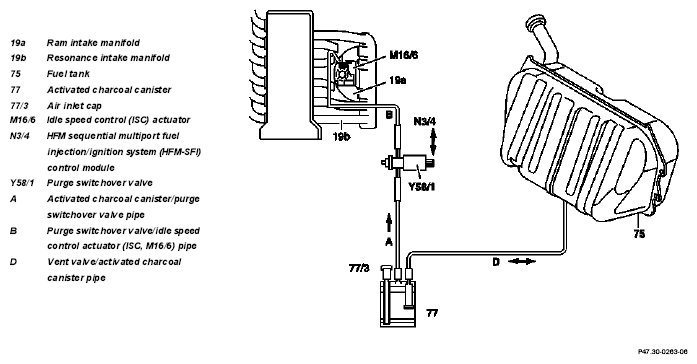

Fig 1: Connecting Diagram Of Evaporation Emission Control System HFM-SFI Model 210 With Engine 104

Connecting diagram of evaporation emission control system HFM-SFI model 170, 210 with engine 111

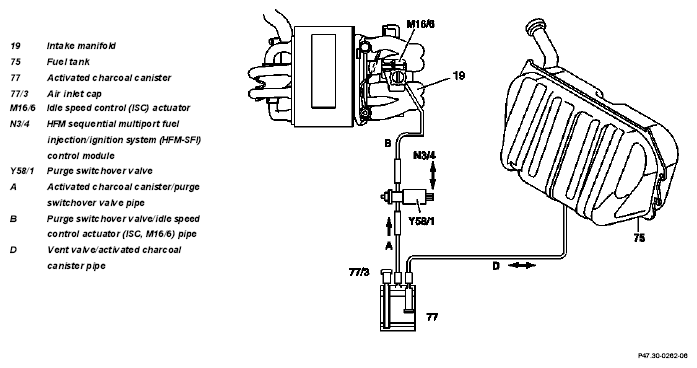

Fig 2: Connecting Diagram Of Evaporation Emission Control System HFM-SFI Model 170, 210 With Engine 111
