Connecting diagram of evaporation emission control system - AR47.30-P-8212-01DC

Function diagram of evaporation emission control system HFM-SFI model 202.028 up to 7/96

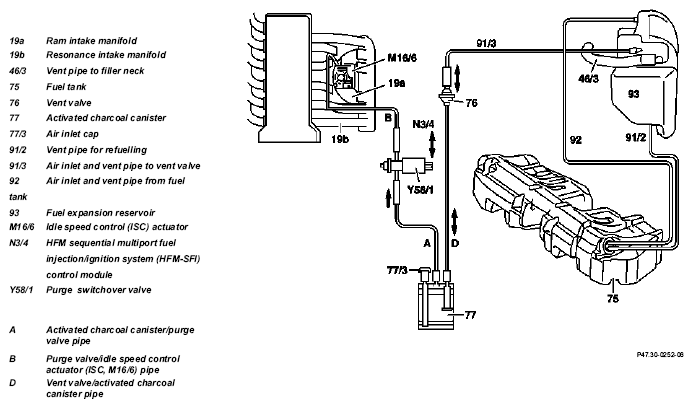

Fig 1: Connecting Diagram Of Evaporation Emission Control System (HFM-SFI Model 202.028 Up To 7/96)
G04715630

Connecting diagram of evaporation emission control system HFM-SFI model 202.022

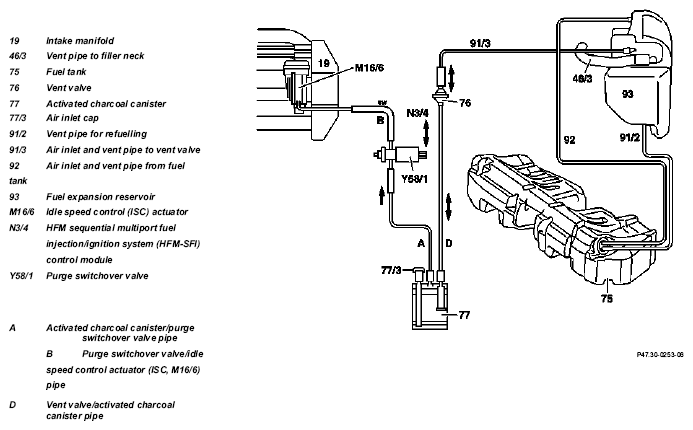

Fig 2: Connecting Diagram Of Evaporation Emission Control System (HFM-SFI Model 202.022)
G04715631

Connecting diagram of evaporation emission control system PEC model 202 with engine 111

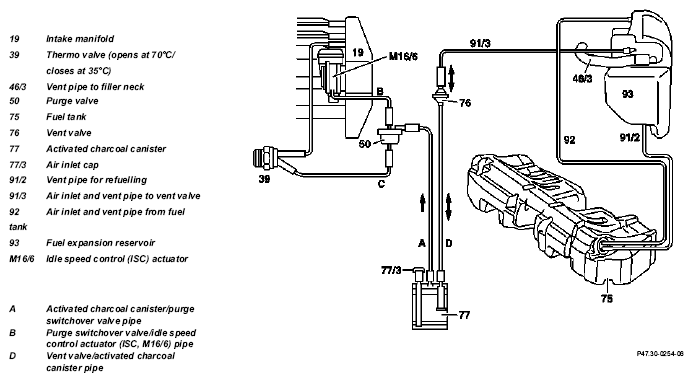

Fig 3: Connecting Diagram Of Evaporation Emission Control System (PEC Model 202 With Engine 111)
G04715632
