Removing and installing rear window molding - AR67.20-P-2200E
MODEL 202
| Removal, installation | |||
|---|---|---|---|
| 1 | Open trunk lid | ||

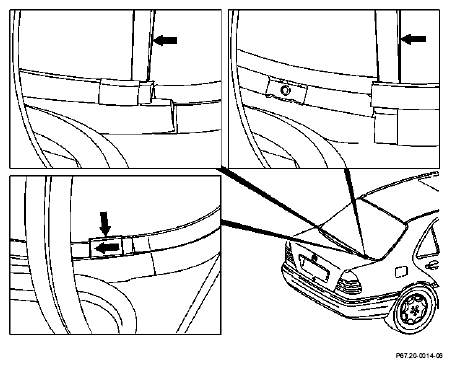

| 2 | Push covers at bottom left and right to side with plastic wedge | ||
| 3 | Press off molding at bottom with plastic wedge | ||
| 4 | Push cover at top to side with plastic wedge | ||
| 5 | Press off molding at side with plastic wedge, press on | before installation ↓ | |
| Press rubber seals into molding | AR67.20-P-2200-01E | ||
| 6 | Reinstall in opposite order |
