Aligning windshield in body opening - AR67.10-P-1000-04E
Test and adjustment values for windshield
| Number | Designation | Model 202 | Model 210 | ||
|---|---|---|---|---|---|
| BE67.10-P-1001-01A | Distance between top of windshield and front edge of roof | Dimension "A" | mm | 12 | 12 |
| See figure | AR67.10-P-1000-04E | AR67.10-P-1000-04E | |||

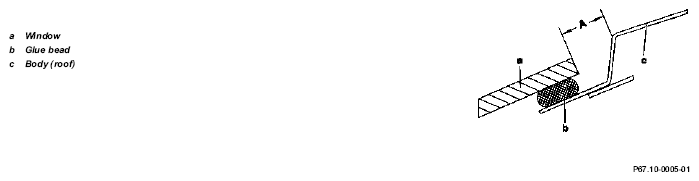

- Before applying glue position windshield on rubber windshield spacers and center (dimension "A", measured between top edge of windshield and front edge of roof).
- Attach strips of adhesive tape (arrows), cut at top edge of windshield and remove windshield.
