Removing and installing power window motor in front door - AR72.29-P-1860E
MODEL 202 with CODE (583) Power windows (front doors) with CODE (584a) Power windows on all 4 or all 6 doors

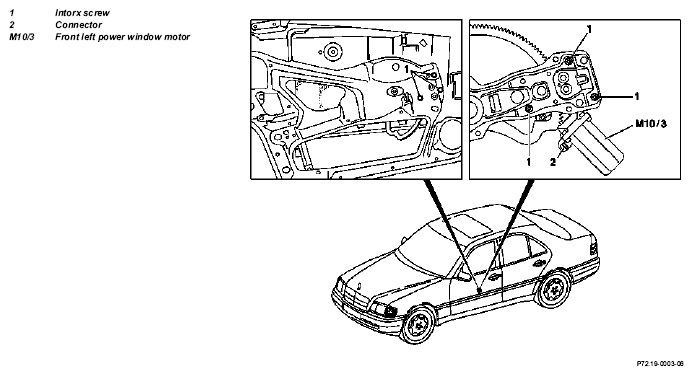

Fig 1: Identifying Power Window Motor In Front Door Remove/Install Components - Model 202 With Code (583)
| Removal, installation | |||
| 1 | Remove door liner on front door | AR72.10-P-1000E | |
| 2 | Partially pull off door liner foil | ||
| 3 | Disconnect connector (2) from front left power window motor (M10/3) | ||
| 4 | Unscrew Intorx screw (1) | Protect against falling down |
Fig 2 |
| *BA72.29-P-1001-01A | |||
| 5 | Move front left power window motor (M10/3) out toward rear | Before reinstalling grease gear on motor lightly When installing observe hole pattern for mounting. | |
| 6 | Reinstall in opposite order |
| Number | Designation | Model 202 | |
|---|---|---|---|
| BA72.29-P-1001-01A | Screw for power window motor in front door | Nm | 13 |
Special tool
