Disassembling and assembling door liner on front door - AR72.10-P-1030E
MODEL 202

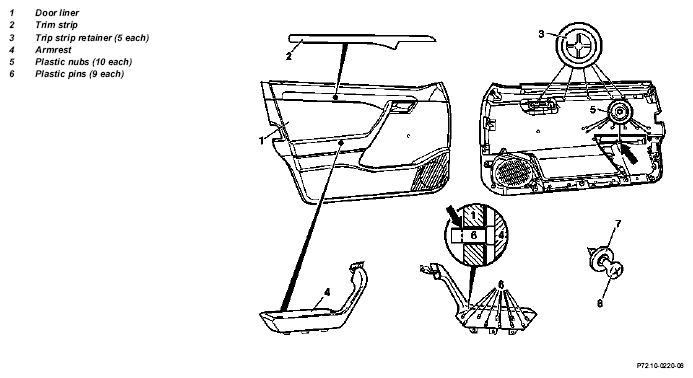

| Disassembly | |||
| 1 | Remove door liner on front door | AR72.10-P-1000E | |
| 2 | Place door liner on suitable surface | ||
| 3 | Remove retainers (3) and trim strip (2) | ||
| 4 | Cut off plastic nubs (5) and remove armrest (4) | One plastic nub is connected to the door pocket (arrow), use chisel to cut off. Door pocket is not exchangeable on door liner for front door. |
|
| Assembly | |||
| 5 | Fit armrest (4) in position and screw down | On new armrest shorten plastic pins (6) to height of rear of door liner Screws (10 each) N 914 138 004 000, washers (10 each) N 000 125 005 312 |
|
| 6 | Install trim strip (2) and fasten with retainer (3) | Replace damaged retainers |
|
| 7 | Reinstall door liner on front door | AR72.10-P-1000E |
