Disassembling and assembling rear bumper - AR88.20-P-2100E

MODEL 202

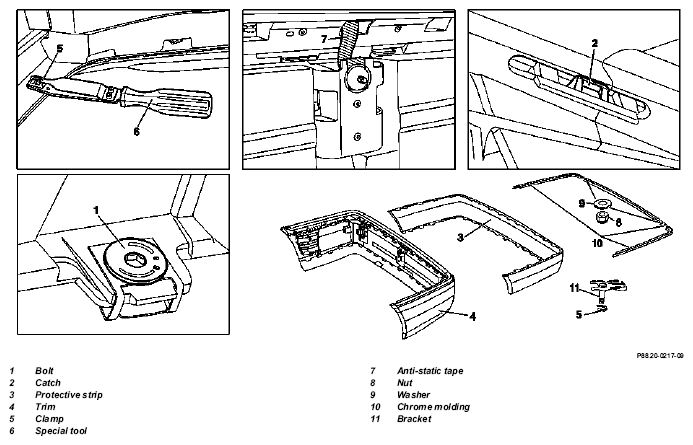

Fig 1: Identifying Rear Bumper Disassemble/Assemble Components - Model 202

	Disassembling, assembling
1	Remove rear bumper		AR88.20-P-2200E
2	Unscrew screw (1)
3	Press off protective strip's (3) catch (2) from trim panel (4) using screwdriver and remove protective strip (3)
4	Remove bracket (5) using special tool (6)		Figure
5	Take off anti-static tape (7)	For bumpers with chrome molding. Replace anti-static tape if damaged
6	Unscrew nut (8) and remove washer (9)
7	Remove chrome molding (10)	When replacing the chrome molding do not mix up brackets (11) (different versions)
8	Assemble in reverse sequence

Fig 2: Identifying Assembly Tool (140 589 34 23 00)
