Removing, installing fuel filler flap - AR80.20-P-2300E
MODEL 202
| Removing and installing | |||
|---|---|---|---|

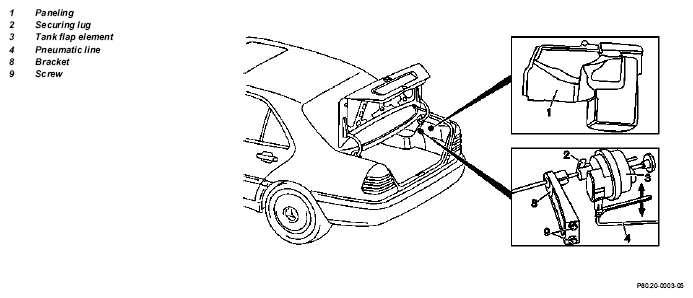

| 1 | Remove liner (1) on right side in trunk | ||
| 2 | Pry off pneumatic line (4) with open end wrench (7 mm) | ||
| 3 | Loosen bolts (9) | ||
| 4 | Detach tank flap actuator (3) with holder (8) from support strut | ||
| 5 | Press mounting lug (2) and pull off holder (8) | ||
| 6 | Check tank flap element (3) for correct pneumatic function | dh0302pa0zv32x | |
| 7 | Install in the reverse order |
