Removing and installing infrared remote control module - AR80.30-P-4400F
MODEL 202 as of 1.12.94 except CODE (491) USA version except CODE (498) Japanese version
MODEL 202 as of 1.9.95 with CODE (491) USA version with CODE (498) Japanese version
| Figure Items, etc. | Operation notes | ||
|---|---|---|---|
| Electrical connections | The 12-pin electrical connection is provided with an installation and removal aid. To remove, press the catch and fold the clip over. The 2-pin electrical connection is secured with a locking device. To remove, press the catch and push the locking device to one side. | ||

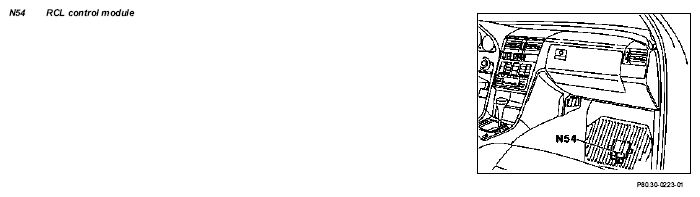

| N54 | Ordering note | When replacing the control module or transmitter key, it is absolutely essential to specify the locking mechanism number and the chassis no. as both parts are matched to each other. | |
| Installation note | The variant coding in accordance with Diagnosis Manual is to be carried out after replacing the control module. |
