Removing and installing front door lock switch - AR80.20-P-2103K
MODEL 202 as of 1.6.97, 208, 210.081 /281, 210 (except 210.081 /281) as of 1.3.97 with CODE (491) USA version with CODE (498) Japanese version

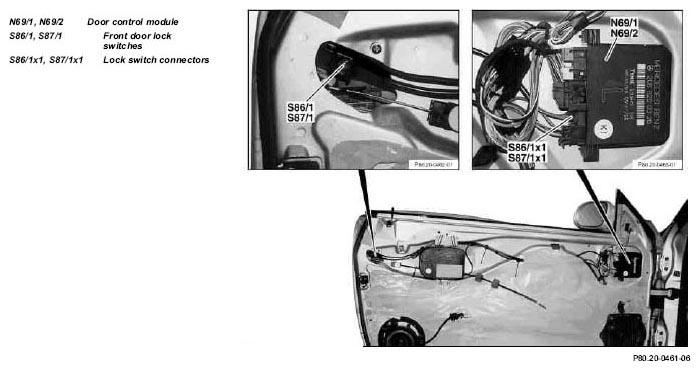

Illustrated on model 208
| Removal, installation | |||
| 1 | Disconnect ground lead from battery | ||
| 2 | Remove door liners on front doors | Model 202 | AR72.10-P-1000E |
| Model 210 | AR72.10-P-1000F | ||
| Model 208 | AR72.10-P-1000K | ||
| 3 | Pull off door foil in area of door lock and disconnect door control module (N69/1, N69/2) | ||
| 4 | Disconnect lock switch connector (S86/1x1, S87/1x1) and expose lead | ||
| 5 | Pull lock switch (S86/1, S87/1) off of door lock | For this purpose press the catch lug on the switch housing behind the electrical lead for the lock switch outward | |
| 6 | Reinstall in opposite order | ||
| 7 | Check central locking for proper function |
