Removing and installing closing confirmation relay - AR80.30-P-4520F
MODEL 202 as of 1.8.96 up to 31.5.97 except CODE (491) U.S. version
MODEL 202.083 up to 31.5.97 except CODE (491) U.S. version
MODEL 210 as of 1.6.96 up to 28.2.97 except CODE (491) U.S. version
MODEL 210.072 up to 31.5.96 with CODE (491) U.S. version
| Removal, installation | |||
| 1 | Expose passenger foot panel and unscrew | ||

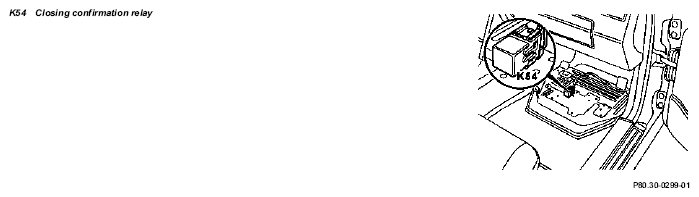

| 2 | Pull closing confirmation relay (K54) off of connector | ||
| 3 | Reinstall in opposite order |
