Removing and installing PSE control module - AR80.20-P-2700E

MODEL 202

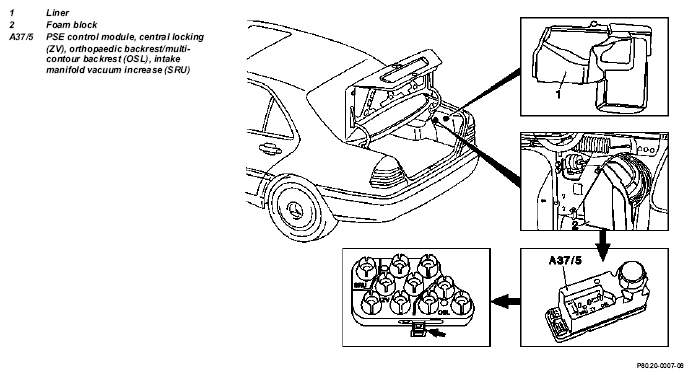

Fig 1: Identifying PSE Control Module Remove/Install Components - Model 202

REVISIONS

18.2.97

Coding note added

	Removal, installation
1	Remove liner (1) on right side in trunk
2	Pull foam block (2) out of trunk recess on right side and open
3	Disconnect electrical connections on pneumatic control unit
4	Disconnect pneumatic distribution plug on pneumatic control unit	For this purpose, pull out retainer (arrow)
5	Check electrical function of pneumatic control block	See Diagnosis Manual, Body
6	Check pneumatic function of pneumatic control unit	See Diagnosis Manual, Body
7	Reinstall in opposite order	If the PSE control module is replaced version coding must be performed with the HHT on vehicles as of 06/97.
