Removing and installing CL actuator for tank flap - AR80.20-P-2300EA

MODEL 202.07/08/18

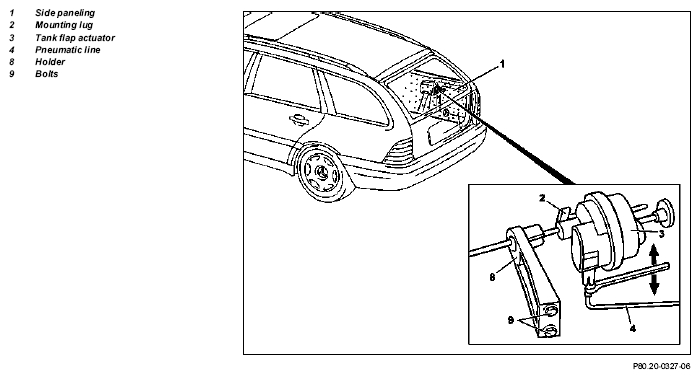

Fig 1: Identifying CL Actuator For Tank Flap Remove/Install Components

	Removal, installation
1	Remove side paneling (1) in rear on right		AR68.30-P-4780A
2	Pry off pneumatic line (4) with open end wrench (7 mm)	Be careful not to break the insert profile
3	Loosen bolts (9)
4	Unhook tank flap actuator (3) with holder (8) from support strut
5	Press mounting lug (2) and pull off holder (8)
6	Check tank flap actuator (3) for proper pneumatic function	See Diagnosis Manual, Body 3.2 PSE/ZV □ 32
7	Reinstall in opposite order
