Rem. and inst. of front door infrared remote control (IFZ) receiver unit - AR80.30-P-4305CA
MODEL 202 up to 30.11.94 with CODE (880a)
MODEL 202 as of 1.8.96
MODEL 210 as of 1.6.96 up to 28.2.97
| Removal, installation | |||

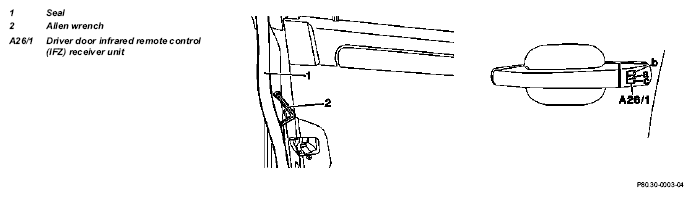

| 1 | Withdraw seal (1) in the area of the door lock from the guide | ||
| 2 | Unscrew mounting screw for receiver unit with 4 mm Allen wrench (2) | ||
| 3 | Pull off driver door infrared remote control (IFZ) receiver unit (A26/1) | ||
| 4 | Reinstall in opposite order |
