Adjusting throttle control - AR30.10-P-1010GG

ENGINE 602.983 in MODEL 461

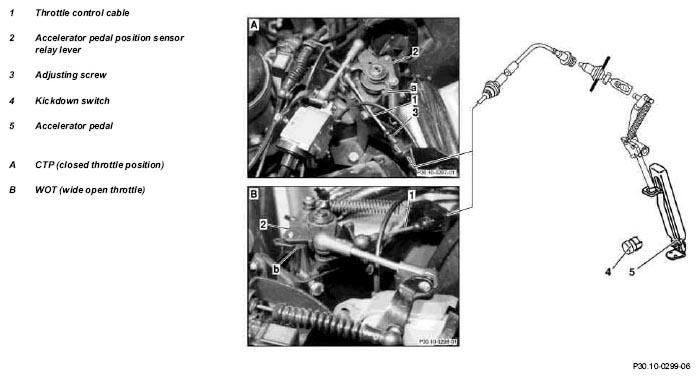

Fig 1: Identifying Throttle Control Components - Engine 602.983 In Model 461

G04715416

1	Inspect condition and ease of operation of relay lever (2) and throttle control cable (1)	Replace parts if necessary.
	Adjusting
2	CTP When the accelerator pedal is not depressed, the relay lever (2) should be resting against CTP stop (a)	HHT should indicate 0 %.
3	Turn adjusting screw (3) sufficiently until relay lever (2) is resting against CTP stop (a) and no further accelerator idle travel exists
4	WOT Depress accelerator pedal (5) until it touches the kickdown switch (4)	Do not operate kickdown switch!
5	Turn adjusting screw (3) until relay lever (2) is resting against WOT stop (b)	Do not over-tension throttle control cable. HHT should indicate 100 %.
	Inspecting
6	Inspect WOT and CTP settings
7	Grease throttle control cable with anticorrosion grease		*BR00.45-Z-1006-06A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1006-06A	Grease	A 001 989 37 51 10
