Removing and installing outside temperature sensor - AR54.30-P-6341CS
MODEL 129 up to 31.8.95
| Removal | |||
| 1 | Remove left headlamp unit | Model 129 except CODE (612b) xenon headlamps | AR82.10-P-4730A |
| Model 129 with CODE (612b) xenon headlamps | AR82.10-P-4730B | ||
| 2 | Remove fuse carrier | Model 129 up to 31.08.95 | AR54.15-P-1255CS |
| Model 129 as of 01.09.95 | AR54.15-P-1255CT | ||

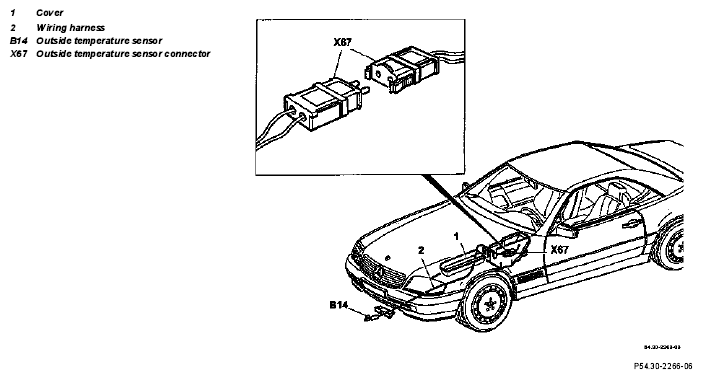

| 3 | Unclip outside temperature sensor (B14) | ||
| 4 | Remove cover (1) | ||
| 5 | Disconnect outside temperature indicator connector (X67) | ||
| 6 | Install in the reverse order |
