Removal & Installation

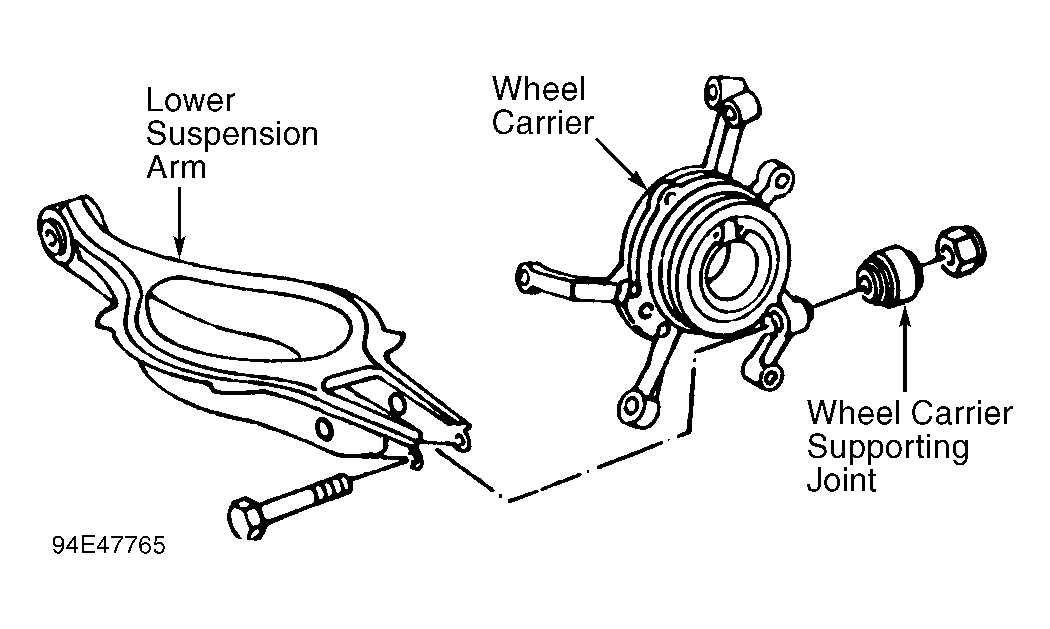

Raise and support vehicle. Remove wheel. Remove lower suspension arm-to-wheel carrier bolt and nut. Lift wheel carrier up, separating it from lower suspension arm. Using a puller, remove supporting joint from wheel carrier. See Fig 1 . To install, reverse removal procedure. Tighten all nuts and bolts to specification. See TORQUE SPECIFICATIONS .
