Removal and installation of compartment for spectacles - RA68001290155X(68-155)

Operation number of the operation texts and work units or standard texts and flat rates respectively

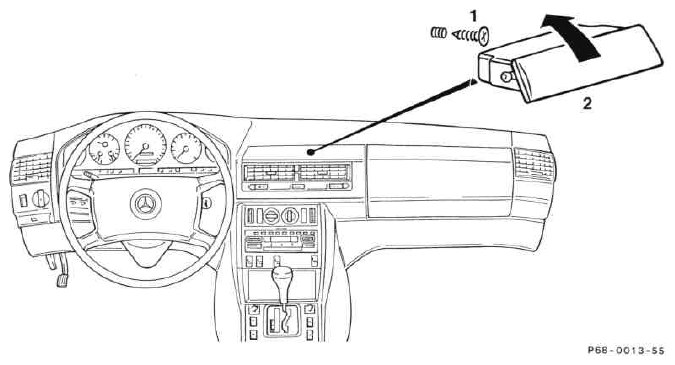

Fig 1: Identifying Compartment For Spectacles Components
G04688042
Cover for spectacle compartment open.
Screws (1) screw out (2 each).
Lock cylinder for glove compartment lock to right with ignition key.
Compartment for spectacles (2) pull out.
Install in reverse order.
