Removal and installation of lock on glove compartment - RA68001290130X(68-130)
Preliminary jobs:
Glove compartment removed (68-140) .
Lock cylinder for glove compartment removed (68-125) .
Operation number of the operation texts and work units or standard texts and flat rates respectively

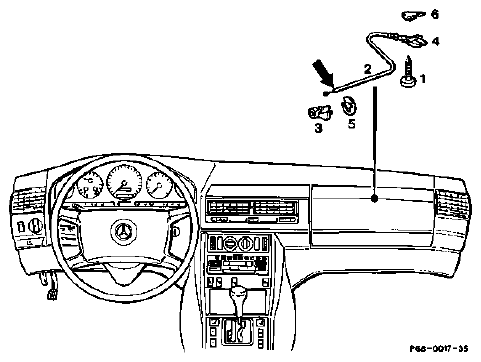

| Screws (1) | screw out (2 each). |
| Control cable (2) on deflection lever (3) | unhook. |

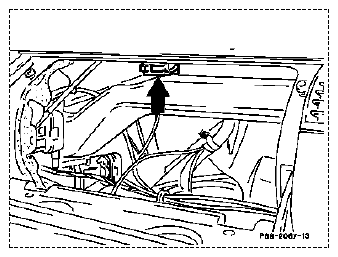

| Control cable sleeve (arrow) on instrument panel | pull out. |
| Lock (4) | remove together with control cable (2). Observe installation note. |
| Install in reverse order. |
Installation note
After installing the control cable adjust knurled nut to zero play, then check for proper function.
