Removing, installing traction systems control module - AR54.21-P-0816GH
MODEL 163.113 /136 /154 /172 /174 #A up to 221505, 163.113 /136 /154 /172 #X up to 734087 with CODE (472a) Electronic Stability Program (ESP)
| Remove, install | ||
|---|---|---|

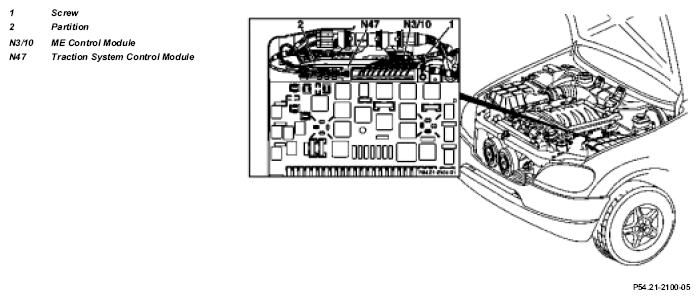

| 1 | Remove cover from fuse and relay box | |
| 2 | Unplug connectors from ME control module (N3/10) | |
| 3 | Unplug connectors from traction system control module (N47) | |
| 4 | Remove screw (1) | |
| 5 | Remove traction system control module (N47) together with ME control module (N3/10) | |
| 6 | Remove traction system control module from partition (2) | |
| 7 | Install in reverse order | |
| 8 | Check coding of brake system |
