Trip computer control module, location/task/design - GF54.50-P-4100GH

MODEL 163 as of 1.9.00 with CODE (245) Trip computer

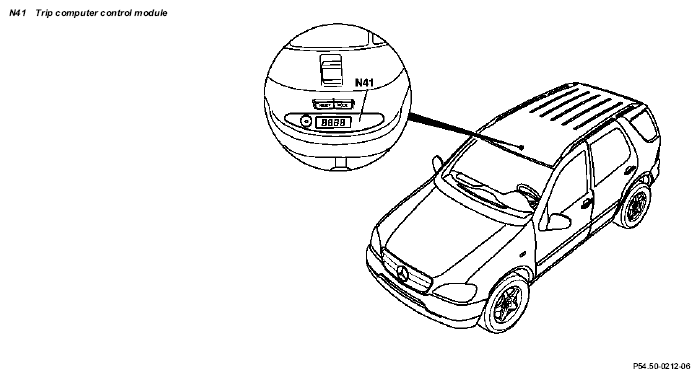

Fig 1: Identifying Trip Computer Control Module Location
G04607710
Trip computer control module, location The trip computer control module (TRIP, N41) is located above the inside rearview mirror unit.
Trip computer control module, task   GF54.50-P-4100-01GH
Trip computer control module, design   GF54.50-P-4100-02GH
