Rear control panel control module, design - GF54.21-P-4120-02GH

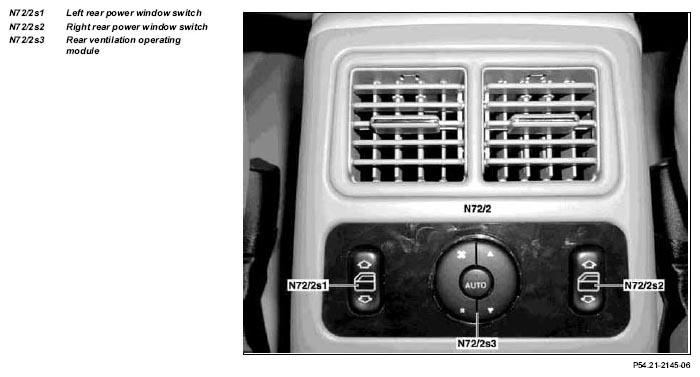

Fig 1: Identifying Left & Right Rear Power Window Switch & Rear Ventilation Operating Module
G04607678

Design:

The rear control panel control module (N72/2)  essentially consists of the block with the switches

The switches integrated into the rear control panel control module (N72/2)  are equipped with switch illumination and function illumination.
