Lower control panel control module, location / task / design - GF54.21-P-4116GH

MODEL 163 as of 1.9.01

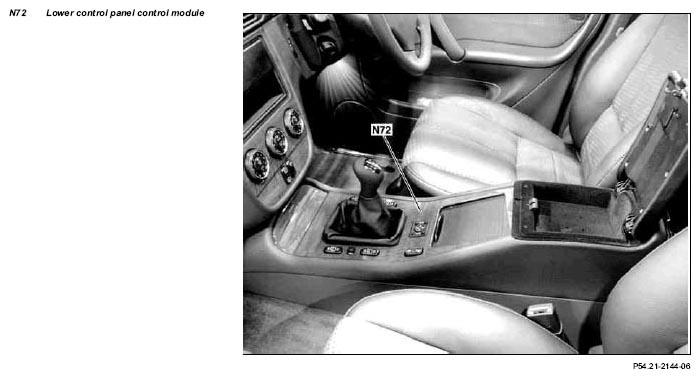

Fig 1: Identifying Lower Control Panel Control Module Location
G04607677
Lower control panel control module, location The lower control panel control module (N72)  is located in the center console.
Lower control panel control module, task   GF54.21-P-4116-01GH
Lower control panel control module, design   GF54.21-P-4116-02GH
