Extended activity module, design - GF54.21-P-4107-02GK

Model 163 as of 12.99

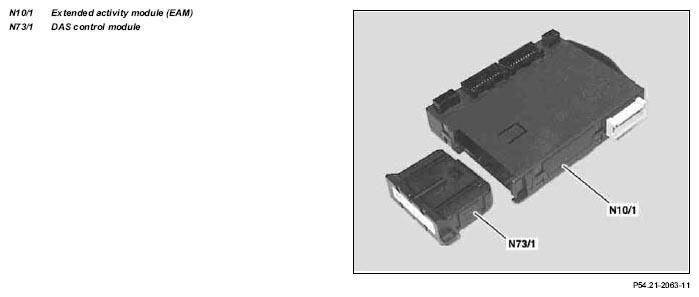

Fig 1: Identifying Extended Activity Module And DAS Control Module163

The extended activity module (EAM, N10/1) is accommodated in a sturdy plastic housing.

It is connected to the wiring harnesses by 5 plug connectors.

The slide-out compartment of the extended activity module (EAM, N10/1) houses the DAS control module (N73/1).

A special tool is required to remove the DAS control module (N73/1).
