Remove contacts from Junior Power Timer plug - AR00.19-P-0120-08A

Secondary unlocking for version with locking bar (JPT)

1. Using a suitable tool, move locking bar (1) in direction of arrow out of locked position.

Shown on 4-pin JPT plug

Secondary release on version with retaining cap (JPT)

1. Using a suitable tool, pry up the lock tab on the retaining cap (6).
2. Move the retaining cap (6) in direction of arrow until it reaches the stop.

Shown on 4/8-pin JPT/MQS plug

Secondary unlocking for version with lock tab

1. Insert suitable tool underneath locking tabs (1).
2. Pry up the locking tabs (1) in direction shown by arrow.

Shown on 4-pin JPT connector

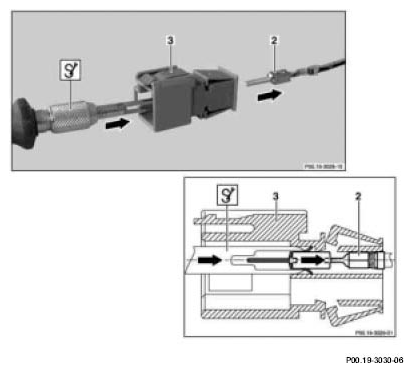

Unpin contact pins form connector (JPT)

1. Insert blade holder with clamping pliers with JPT/SPT blade or MCP 2.8/Fl. 2.8/JPT/SPT blade from the front through the openings in contact cavity of connector housing (3).

   This results in the spring shackles of the contact pin (2) being compressed.

2. Remove contact pin (2) from connector housing (3) by gently pulling the relevant cable.

Shown on 4-pin JPT connector
