Removal & Installation

Disconnect negative battery cable. Remove radio using special Removal Keys (000 833 03 61). See Fig 1 . To install, reverse removal procedure. After reconnecting battery, go to PROGRAMMING  to enter radio code.

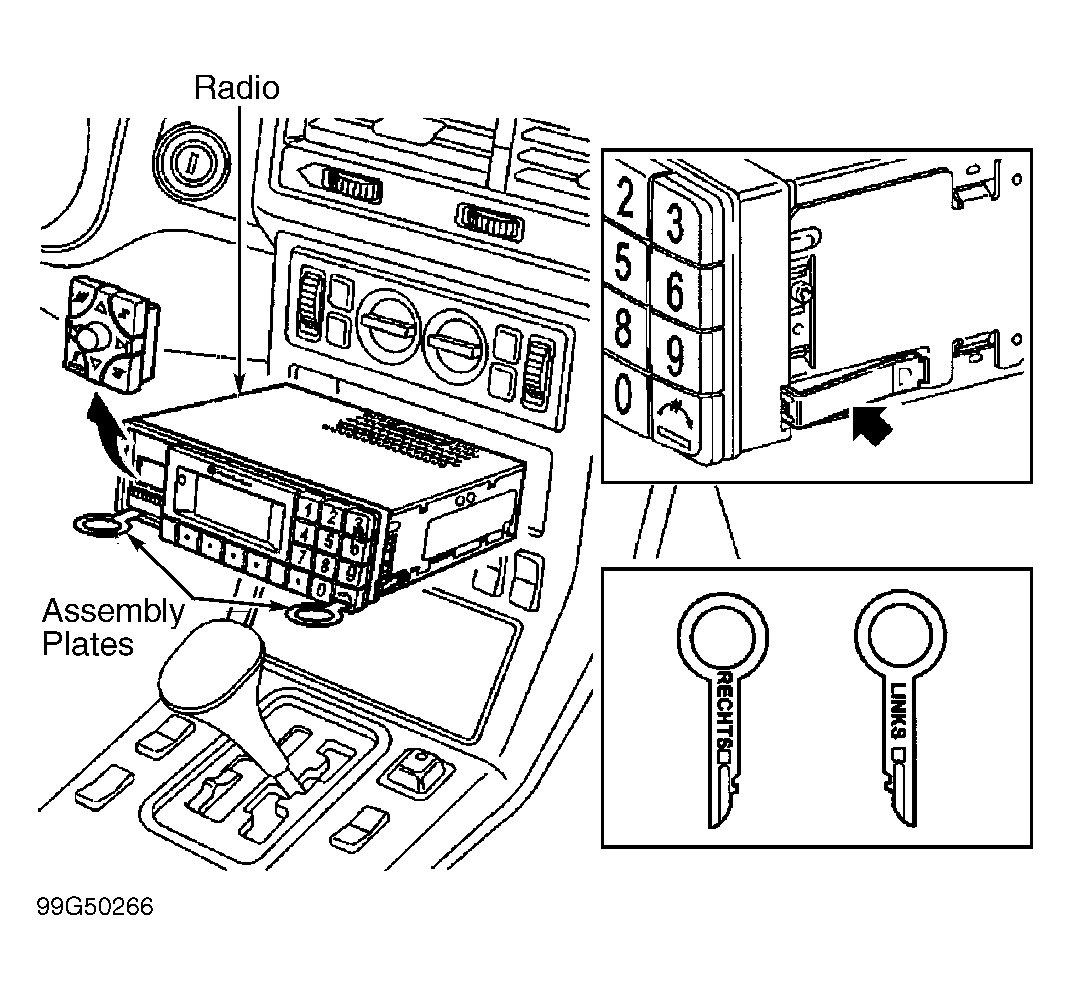

Fig 1: Removing Radio (Audio 30 Radio Shown; Audio 10 Radio Is Similar)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
