Remove/install front brake cable - AR42.20-P-0520A: Notes

MODELS 129, 140, 202, 208, 210

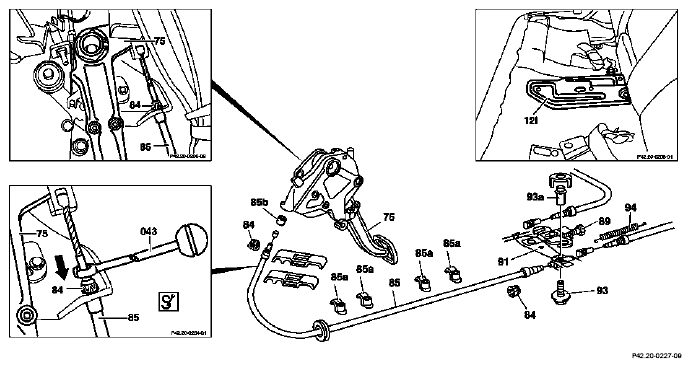

Fig 1: Identifying Front Brake Cable Remove/Install Components

MODIFICATION NOTES

12.12.02	Notes on safety for lifting platform, included for the first time		AS00.00-Z-0010-01A
12.12.02	Check version of pedal assembly, included for the first time	Step 12.1	BT42.20-P-0510-01A

	Remove/Install
	Lethal injuries  are possible if vehicle slips off of lifting platform	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1.1	Carefully lower transmission with engine support	The motor must not touch the partition wall.
		Model 140 with engine 120	AR22.10-P-1160AO
		Model 140 with engine 603	AR22.10-P-1160HW
		Model 140 with engine 606	AR22.10-P-1160HB
2.1	Remove cover panel (12i) under rear seat cushion	Models 202, 208, 210
2.2	Remove heat shield of exhaust system.	Models 129, 140
3	Pre-tension automatic cable slack adjuster	Model 140	AR42.20-P-0520-01A
		Models 202, 208, 210	AR42.20-P-0520-01B
4	Detach return spring (94)
5	Slacken adjusting screw (89)	Model 129
6	Detach brake cable (85) at intermediate lever of cable slack adjuster (91) and at vehicle floor	Use snap-release tool (043). The brake cable (85) can also be removed by breaking the clamping ring (84). To install, insert a new clamping ring in the groove in the brake cable (85).
		Snap-release tool	Figure
7	Remove cover below instrument panel	Model 129	ra68001290150x
		Model 140	ra68001400150x
		Model 202	AR68.10-P-1500E
		Model 208	AR68.10-P-1500K
		Model 210	AR68.10-P-1500F
8	Remove front left floor covering	Model 129 Model 140
		Model 202 Model 208	AR68.20-P-2050E
		Model 210	AR68.20-P-2050F
9	Detach brake cable (85) from parking brake pedal (75)	Use snap-release tool (043). The brake cable (85) can also be removed by breaking the clamping ring (84). To install, insert a new clamping ring in the groove in the brake cable (85). Pay attention to the rubber grommet (85b).	Figure
10	Install in the reverse order
11.1	Relieve load on automatic slack adjuster.	Models 140, 202, 208, 210	AR42.20-P-0520-02A
	Inspecting
12.1	Check version of pedal assembly	Model 129
	Parking brake pedal assembly modified		BT42.20-P-0510-01A
13.1	Adjust parking brake	Model 129	AR42.20-P-0540A

Fig 2: Identifying Snap-Release Tool (129 589 11 63 00)
