Removing and installing head restraint guides on front seats - AR91.16-P-0050K

MODEL 208

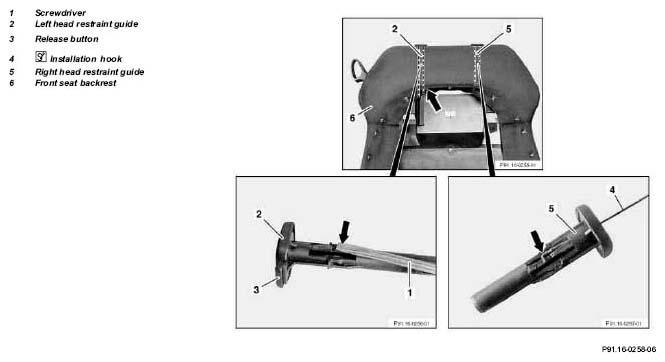

Fig 1: Identifying Head Restraint Guides On Front Seats Remove/Install Components

	Removal
1	Tensioning element on front seat backrest removed		AR91.10-P-1910K
2	Remove head restraint
3	Press back catch for head restraint guide (2) with screwdriver (1) by inserting screwdriver (1) through cutout in backrest frame (arrow) while simultaneously pulling head restraint guide (2) up and out
4	Insert installation hook (4) into head restraint guide (5) at top and press back catch while simultaneously pulling head restraint guide (5) up and out		Fig 2
	Installation
5	Insert head restraint guides (2 and 5) into front seat backrest (6) so that the catch points toward the rear	The head restraint guide (2) with the release button (3) must be installed on the left side
6	Insert head restraint guides (2 and 5) into front seat backrest (6) so that catch arrests in backrest frame
7	Install head restraint
8	Install tensioning section on front seat backrest		AR91.10-P-1910K

Fig 2: Identifying Puller Hooks (140 589 02 33 00)
