Removing and installing front power seat motor group (seat cushion) - AR91.29-P-1420KA

MODEL 208

Front seat with semi-electric seat adjustment

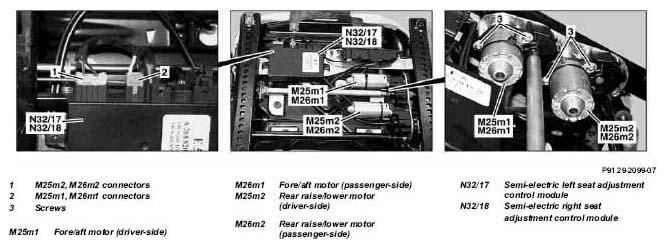

Fig 1: Identifying Front Power Seat Motor Group (Seat Cushion) Remove/Install Components - With Semi-Electric Seat Adjustment
G04729770
REMOVINGINSTALLING Removal, installation
1 Remove front seat IMPORTANT Disconnect electrical connectors AR91.10-P-1000K
2 Expose electrical lead and disconnect corresponding connector (1 or 2) from control module IMPORTANT Only lead and connector on corresponding motor
3 Unscrew screws (3) from corresponding motor and remove motor IMPORTANTInstallation:  Ensure that drive gear is seated correctly
    TORQUE SPECIFICATION *BA91.29-P-1001-01A
4 Install in opposite order
TORQUE SPECIFICATION SEAT ADJUSTMENT

Number Designation Model 208
BA91.29-P-1001-01A Screw for seat adjustment motor Nm 4
