Removing and installing cover on front seat cushion - AR91.18-P-1800K
MODEL 208
| Removal, installation | |||
| 1 | Front seat cushion removed | AR91.10-P-1070K | |

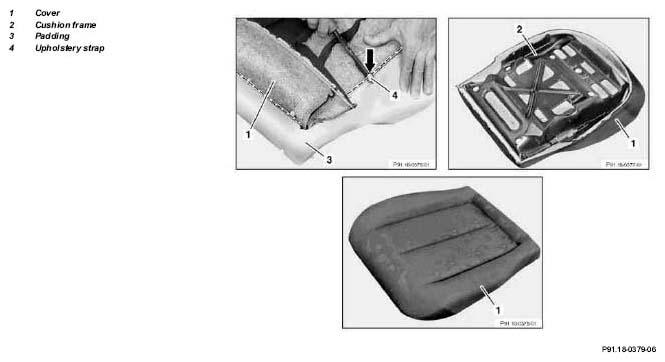

| 2 | Lay seat cushion down on suitable surface with cover (1) downward | ||
| 3 | Unhook cover (1) in channel all around | ||
| 4 | Remove cushion frame (2) from padding (3) | ||

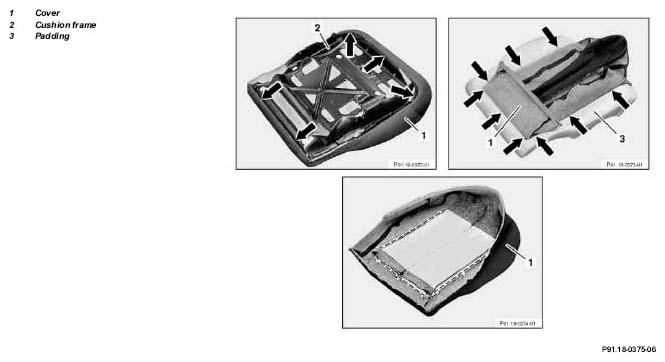

| 5 | Fold cover (1) back over padding (3) and release longitudinal and lateral upholstery clips (9 clips) | ||
| Fig 3 | |||
| 6 | Remove cover (1) from padding (3) | ||
| 7 | Reinstall in opposite order |
