Removing and installing control cable for entrance assist - AR91.10-P-1480K

MODEL 208 except CODE (241) Memory circuit for electrically adjustable left front seat except CODE (242a) Memory circuit for electrically adjustable right front seat except CODE (275a) Memory package (driver's seat, steering column, mirror)

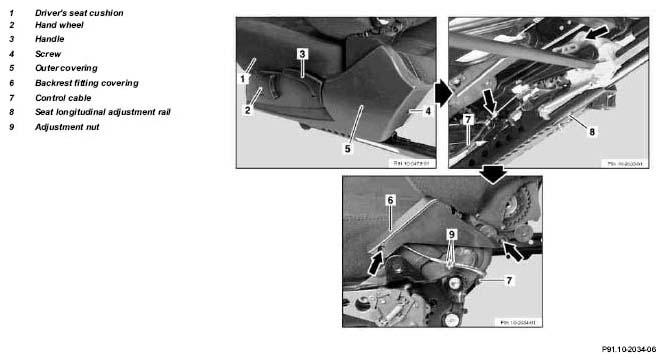

Fig 1: Identifying Control Cable For Entrance Assist Remove/Install Components

	Removal, installation
1	Front seat removed		AR91.10-P-1000K
2	Remove hand wheel (2), handle (3) and covering (5)
3	Unhook pull nipple (arrow) and control cable (7) from lower mount (arrow)
4	Remove covering (6, 2 screws)
5	Loosen adjustment nuts (9) and unhook control cable (7) from backrest fitting	Installation:  Adjust control cable (7) so that the arrest for the seat longitudinal adjustment is fully released when the backrest is pivoted all the way to the front and locked.
6	Install in opposite order
