Removing and installing pushbutton control module - AR83.40-P-6350C

MODEL 129 as of 1.6.96,140, 202 as of 1.9.95,208, 210 with CODE (581a) Air conditioning (automatic)

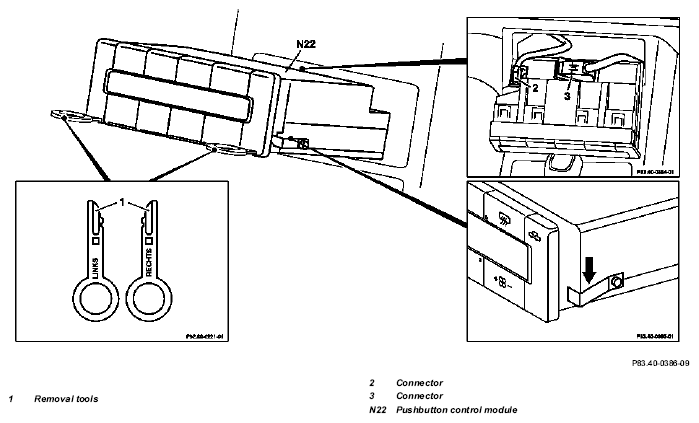

Fig 1: Identifying Pushbutton Control Module Remove/Install Components

Shown on model 129

	Removal, installation
1	Pull out A/C pushbutton control module (N22)	For this purpose insert removal tools (1) ↓ Press back retaining springs (arrow) on removed pushbutton control module and pull out removal tools (1)
2	Disconnect connectors (2, 3) on A/C pushbutton control module (N22)	Unhook connectors by pivoting retaining strap
3	Reinstall in opposite order	Installation  When replacing automatic A/C pushbutton control module on models 140, 202, 208, 210, version coding must be carried out.
